IWS
2-Channel In-Wall Stereo Amplifier

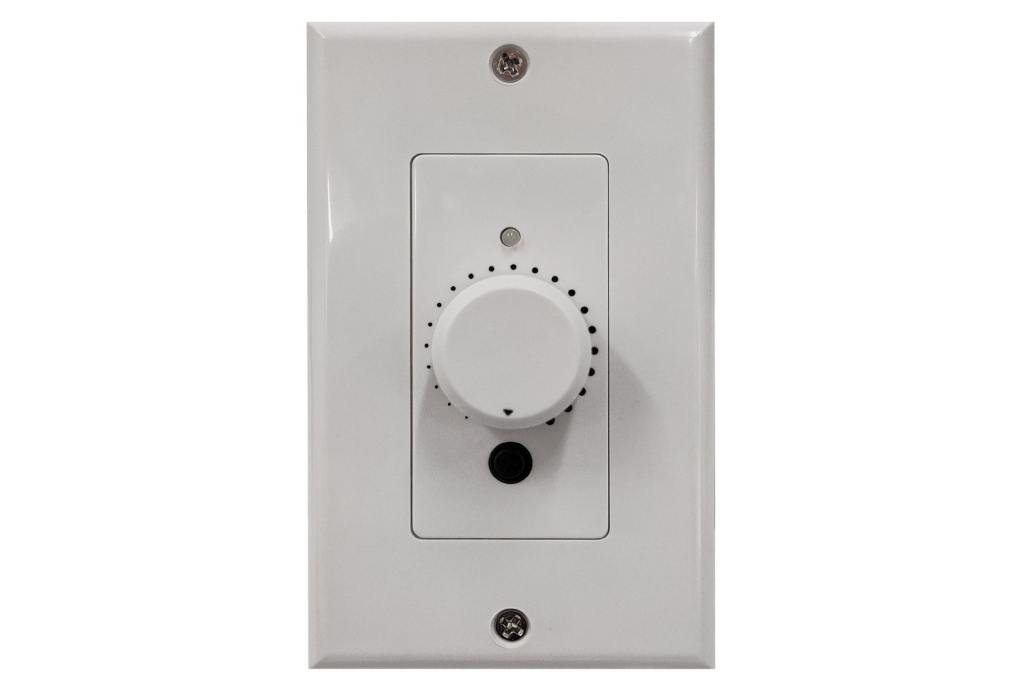

IWS Stereo Balanced In-Wall Pre-amp
The IWS was designed to receive an input signal from the front panel 3.5mm line input and send it to the BTA-250 (sold separately) for amplification via a CAT5/6 cable. Through the use of a Cat 5/6 cable, the IWS will utilize Earthquake’s HVBT (High Voltage Balanced Transport™) to send power and signal over Ethernet making the BTA-250 virtually immune to input signal noise.
The IWS can be powered by a CP2425 12–24VDC power supply (sold separately) that can either be plugged into the front panel or hard wired to the phoenix connector on the back of the unit. Designed to fit into most standard single-gang junction boxes, the IWS can be easily installed into any new or pre-existing constructions (homes, bars, restaurants, garages, hotel rooms, etc.). It will make listening to your favorite music or movies in any room possible.
Note: Earthquake uses a proprietary CAT 5/6 port configuration and is available upon request.
- Box dimensions
- 14 × 14 × 16 cm
- Weight
- 0.735 kg
Specifikationer
- Input Connections
- 3.5mm Stereo Line In
- Output Power
- 4 Volts Balanced
- Power Input
- 12–24VDC
- Power Range
- 12–24VDC
- Signal to Noise Ratio
- 105dBA
Produkt Dimensioner
- Height
- 115 mm
- Width
- 70 mm
- Mounting Depth
- 44.45 mm
- 2-Channel Balanced Output Pre-amp
- Cat 5/6 PoE + Signal
- Easy Installation
- High Voltage Balanced Transport™
- Multi-Room Solution
- Up to 200ft (61m) Noise-Free Audio
- Works with Earthquake BTA-250 In-Wall Amplifier
