SWAT-2.4X – Stereo Wireless Audio Transmitter Set



SWAT 2.4X is a wireless audio transceiver that allows you to play audio material from your audio source player to any speaker wirelessly.



Hard wiring your speakers to your sound source is costly and time consuming. SWAT 2.4X makes install a snap and does not compromise sound quality for convenience. It is extremely versatile and perfect for apartments or outdoor settings. It even has microphone capability so you can transmit voice as well.
Sammenling produkt

1.525,00 DKK
1.256,25 DKK

Sælges parvis

EAN: 0068975900657 Excluding VAT 1005 DKK

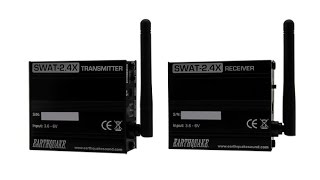

SWAT 2.4X consists of a Transmitter (a unit that connects to the source) and a Receiver (a unit that connects to the amplifier or powered speaker). The SWAT 2.4X Transmitter connects to a stereo, MP3 player, computer, or any other device that can play audio through a 3.5mm stereo jack or RCA output. Alternately it can also be connected directly to the speaker outputs via its High level input supporting  0.5V to 17V RMS.

The Receiver is then connected to an amplifier or a powered speaker through an RCA input. Multiple Receivers can connect wirelessly to one Transmitter if you want the music to play in different areas or on multiple systems. Extra Receivers can be purchased separately.
SWAT-RECX_01

Once  the Transmitter and Receiver are paired,  the Receiver will receive signals  from  the Transmitter automatically. If there is any interference on the current channel, all you have to do is change to the channel of  the Transmitter;  the Receiver can sense  the  frequency change and will adjust automatically.   It has 20 available channels, more channels  than any other wireless  transceiver has  to date.  There  is also a one  in 20 million chance  that  the pairing channel will  interfere with a different signal.
Both  the Transmitter and  the Receiver must be connected  to a power source of which  there are  two options. One is the DC power supply which connects to any wall outlet, and the other is USB.

Applications:

  • Audio transmission in a large room (DJ)
  • Outdoor speakers (BBQ, Patio, Pool)
  • Wireless audio transmission for surveillance
  • Paging System
  • Wireless microphones or loudspeakers
  • iPod, sound card, CD, DVD, MP3, smart phones players or other music players
  • Wireless headphones
  • Ambient music (in offices, hospitals, waiting rooms)
Comes with:
SWAT-24X_10
  • 1 Transmitter
  • 1 Receiver
  • 2 RCA to 3.5mm jack cords
  • 1 3.5mm jack to 3.5mm jack cord
  • 2 110/220 Power Supplies

SWAT-24X_00

Box dimensions
N/A
Weight
kg

Specifikationer

Channels
20
Band Rate
2 Mbps
Frequency Response
5Hz – 20.000Hz
Frequency Range
2400-2528MHz
Work Current
Max 120mA (transmitter)
Max 40mA (receiver)
Work Voltage
3.6 – 6V DC
Range
Open field range test free from interference up to 100 meters

Produkt Dimensioner

Height
25 mm
Width
69 mm
Depth
80 mm
  • Additional High level input 0.5V to 17V RMS for direct connection to amplifier (hooks up just like a regular speaker)
  • Audio muting function when receiving weak signal or no signal
  • Auto channel scanning function
  • Digital transmission
  • HDCD transmission grade
  • Low power consumption
  • Lowest latency (<0.5ms)
  • Two types of inputs supporting microphones and stereo
  • USB connection supports power and audio source (source device must support analog 2 pin USB audio output)

Manual

Cut-sheet

SWAT2.4X Pairing Troubleshooting
