The FF series from Earthquake :
Power, Performance and Affordability

The new FF line of subwoofers is the next evolutionary step in the continued quest for superb bass performance. The FF series offers versatility, small footprint and good looks all while staying surprisingly affordable.

The powerful woofers used in the FF line have direct  lineage to the lauded MiniME subwoofers sporting massive excursion and high power handling. The amplifiers are refined descendants of the signature Sub-Series from Earthquake.

Sammenling produkt

5.675,00 DKK
3.112,50 DKK

Sælges enkeltvis

EAN: 0068975900459 Excluding VAT 2490 DKK

FF-10_slotport_technology

The third generation Earthquake FEA computer-modeled bass Slot-Port loading increases the output of the powerful woofer/amp combo. The new Slot-Port provides more port volume than possible with traditional tubular port loading resulting in radically increased low frequency output.  Since it is not a tubular device, it can bend at optimum angles reducing cabinet size making the subwoofer both powerful and aesthetic. It also routes laminar airflow across the aerodynamically shaped internal amplifier heat-exchangers.

This forced flow cooling technique enables the FF subs to operate at continued high levels, even if fully built-in.  The Slot-Port is an integral part of the subwoofer and serves as a cross brace making the cabinet very strong and resonance free.

The advanced design features coupled with rational manufacturing are keys to the FF lines unbeatable price and performance combination. All this boils down to the fact that the creation of the new FF subwoofers was no accident, rather the result of meticulous engineering building on a heritage of excellence.



The FF series from Earthquake : Power, Performance and Affordability.



FF-10_13

Box dimensions
42 × 47 × 37 cm
Weight
11.8 kg

Specifikationer

Farver
Black Ash finish
Woofer Size
10″
Class
A/B
Amplifier Power
400W
Frequency Response
25Hz – 125Hz

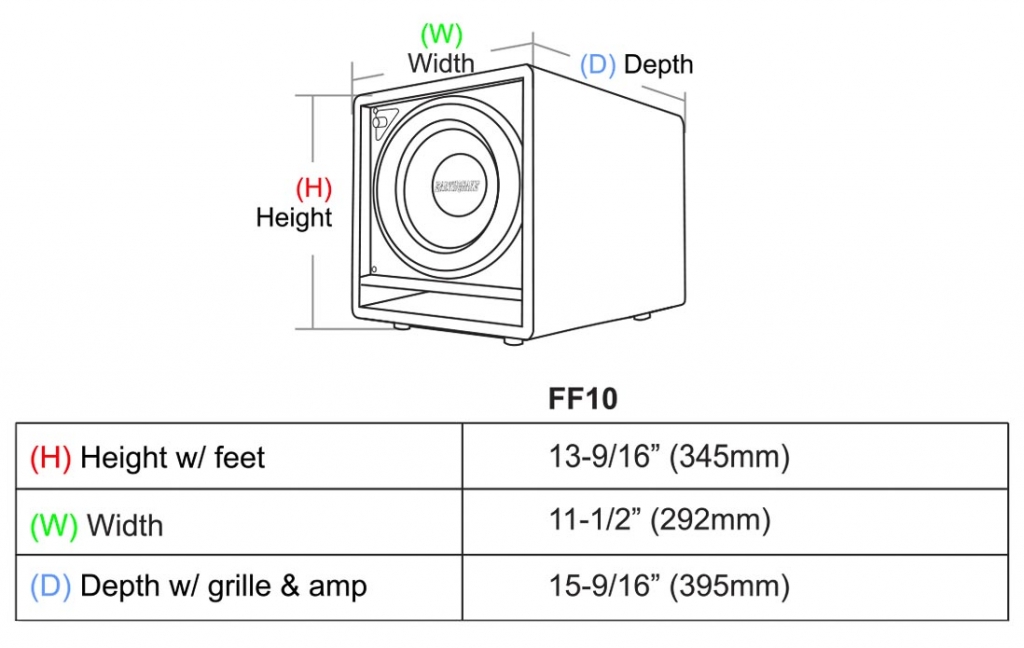

Produkt Dimensioner

Height
345 mm
Width
292 mm
Depth
395 mm

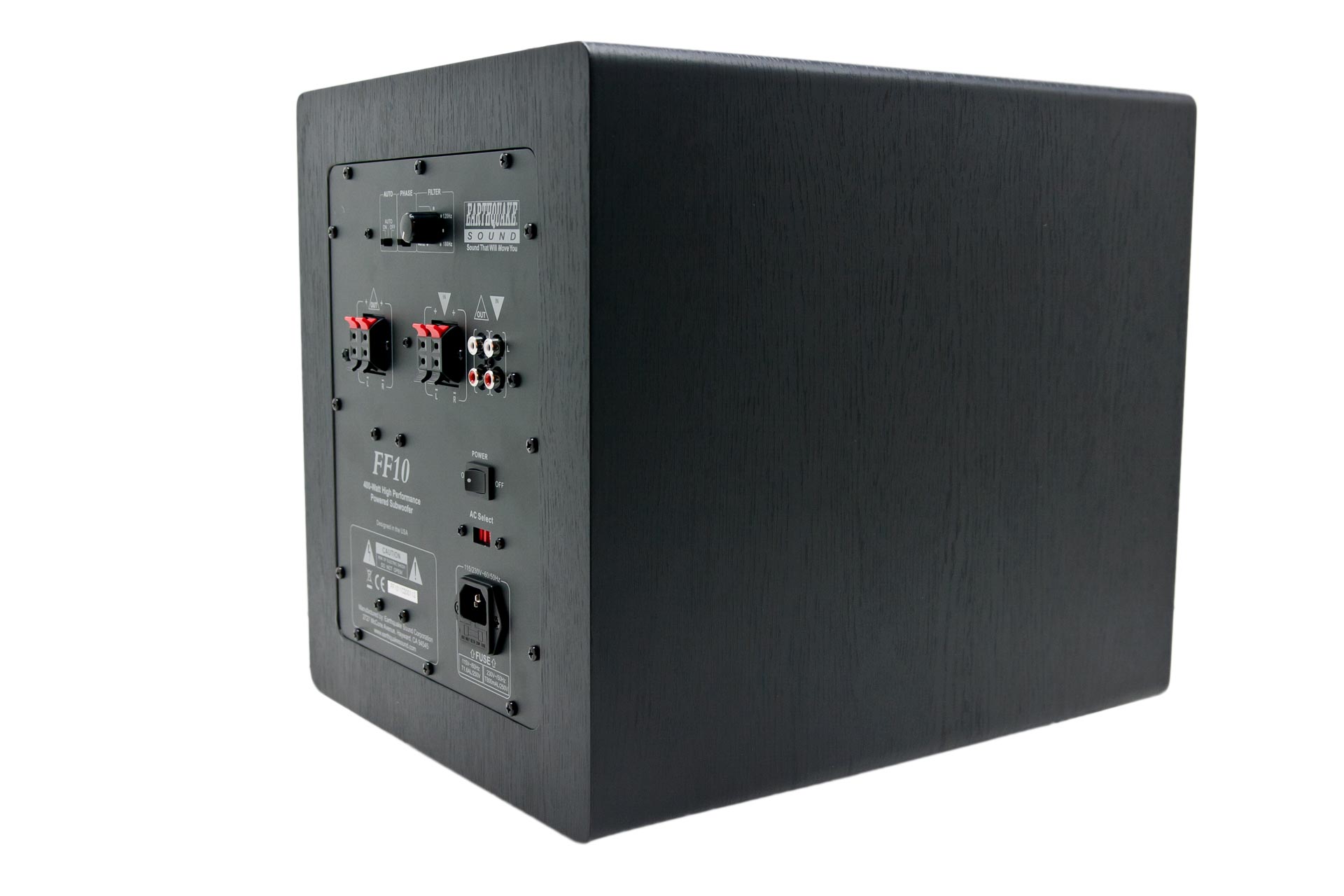

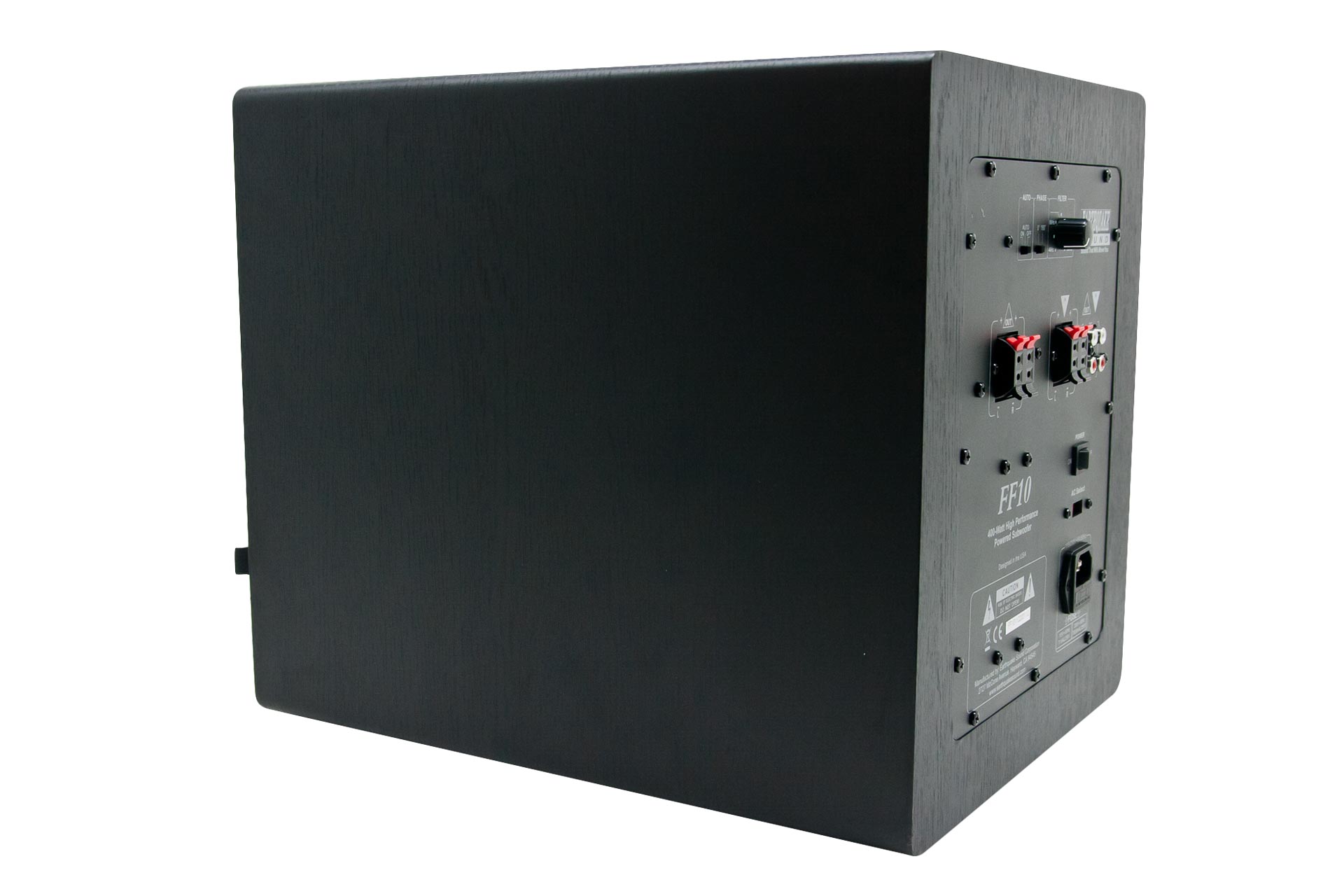

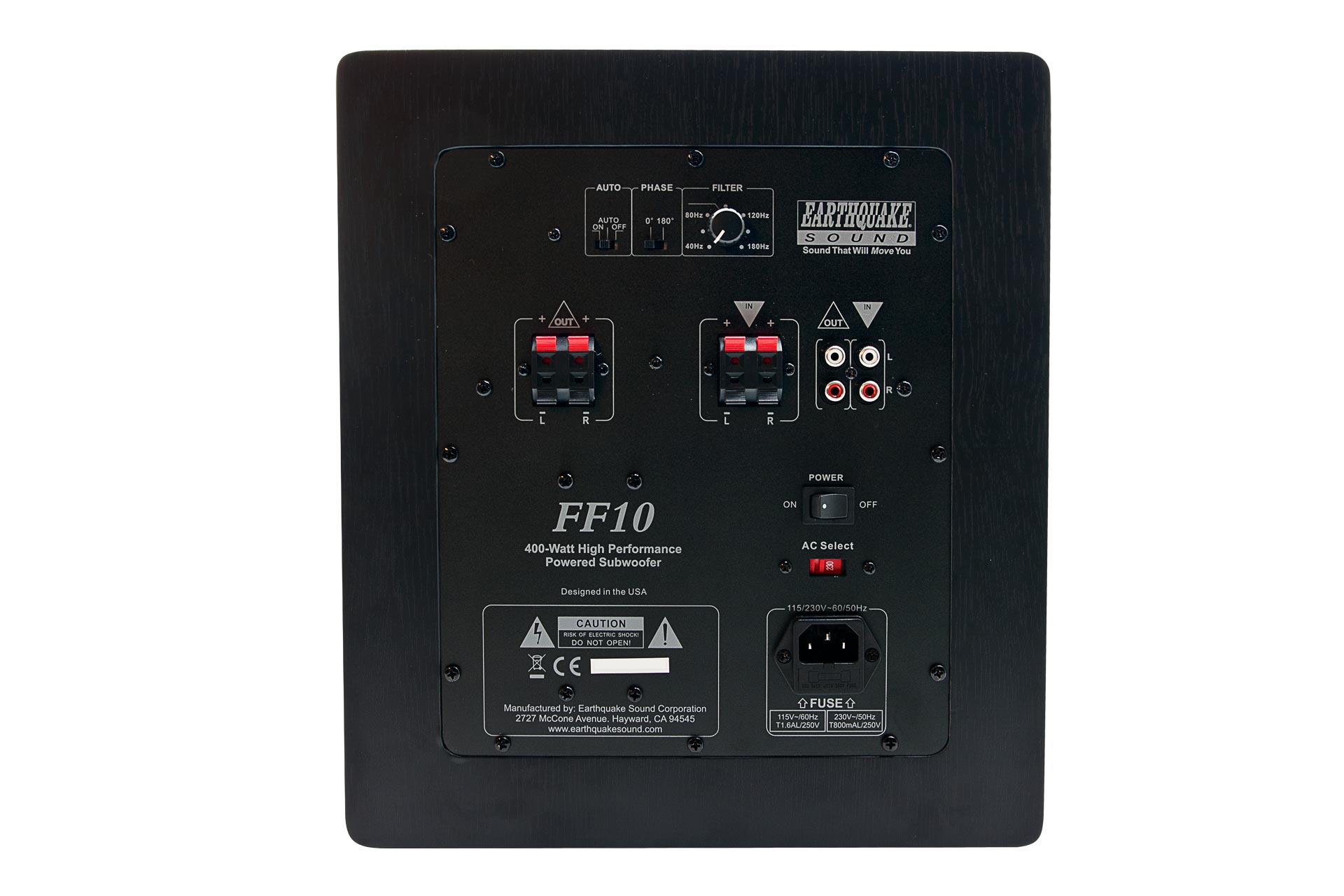

  • 0 – 180 degrees phase shift
  • 10″ High Power subwoofer
  • 12 dB / Octave variable filter from 40 Hz to 180 Hz
  • 400 watts class “AB” high efficiency power amplifier
  • Automatic signal detection circuitry
  • Black ash finish
  • High level (high level) audio inputs
  • Line through (high level) audio output
  • Line through (RCA) audio outputs
  • Low level (RCA) audio inputs
  • Status LED indicators. ON when blue & OFF when red

Manual

Cut-sheet

Product release

Schematics

FF-10 FAQ

a) If Switch is in “OFF” position. The LED is RED. The subwoofer is off – this means it will not play any music.

b) If Switch is in “ON” position. The LED is GREEN or BLUE (color depends on the model of the subwoofer). The subwoofer is in ON – this means it will play music.

c) If Switch is in “AUTO” position, there are two outcomes:
1) If the unit was in “ON” before switching to AUTO, the LED will be GREEN/ BLUE
2)If the unit was in “OFF” before switching to AUTO, the LED will be RED.

When the sub is in AUTO mode, it senses if receives a signal. When it receives a signal, it will turn ON the sub (LED will be green/blue). If the sub does not receive a signal for 20-30 minutes, it will turn the unit off – LED will be red. As soon as it gets a signal again, the unit will turn on and LED will be green/blue.
